6063 Aluminium Coil

Product Description

Product Description

Type	Chemical Composition For several alloys
Type	Si	Fe	Cu	Mn	Mg	Zn	Ti	other	Al
1060	0.2	0.25	0.3	0.03	0.03	0.03	0.03	0.03	99.6
1050	0.25	0.4	0.05	0.05	0.05	0.05	0.03	0.03	99.5
3003	0.6	0.7	0.05-0.20	1.0-1.5		0.1		0.15	Remain
5052	0.25	0.4	0.1	0.1	2.2-2.8	0.1	------	0.2	Remain
Product	1100/3003/3105/5052/6061 Aluminum Alloy Coil for building construction used
Thickness	0.2mm-8mm
Width	100mm-2650mm, the max width we could reached is 2650mm
Length	As customer's requirements
Temper	temper H, temper O, temper T
Features	Our company mainly doing with 1,2,3,5,6,7 series aluminum sheet/coil.For different customers' requirements.
Features
Application	1) roof2) car building3) curtain wall4) Shelter5) oil tank6) mould





Surface	flat, cleaness, without oil
Packing	Export standard wooden pallets (as per requirements)
Payment Terms	100% T/T, 30% as deposit, 70% balance payment before the shipment
Minimum Order Quanlity	5-12 tons pre size
Delivery time	15-20 Working days after received 30% Deposit One Container
Loading Port	any port in China
Remark	Specific requirement of alloy grade,temper or specification can be discussed at your request

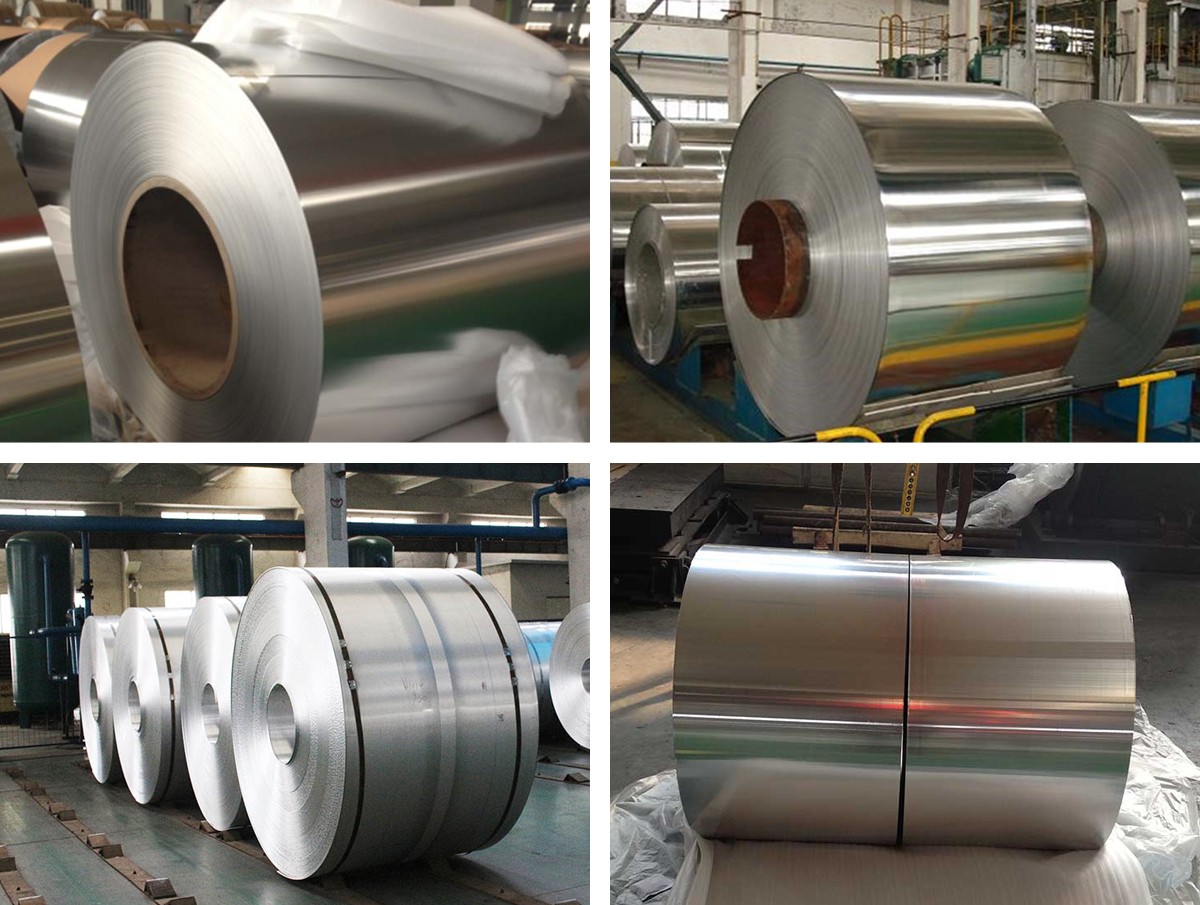

Detailed images of SA1C hot dip aluminised aluminium coated sheet aluminized steel coils


Detailed images of aluminm coated steel coil	Detailed images of aluminum coated steel coil

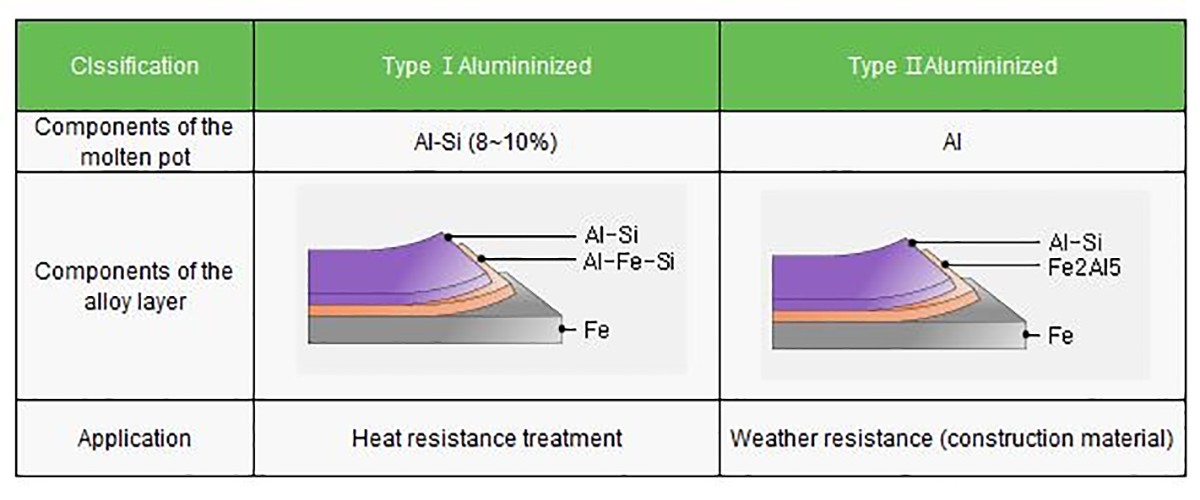

Coating Layers of hot dip aluminium coated steel:

What are the characteristics of rolled aluminized coils?

Hot-dip aluminized steel sheet combines the mechanical properties of cold-rolled steel sheet with the high resistance retention, thermal reflectivity and excellent rust resistance of aluminum.

> > Heat resistance: Compared with galvanized steel plate and cold-rolled steel plate, ALCOAT has little change when exposed to the temperature as high as 450 degrees Celsius for a long time, and its attractive surface brightness will not be affected.

> > Thermal reflectivity: ALCOAT's elegant surface reflects about 80% of heat at 450 degrees Celsius. Where there is infrared light, its reflectivity is as high as 95%. This makes ALCOAT an ideal choice for producing heat reflection plates for toasters, ovens, gas stoves and oil stoves.

> > Corrosion resistance: Aluminum is often more resistant to corrosion than manganese, molybdenum, chromium, tungsten, cadmium, iron and zinc. However, due to the good stability of alumina film itself, its surface corrosion resistance is much better than that of galvanized sheet except for some environmental conditions.

> > Green environmental protection performance: harmless to human body, it is an environmental protection product, and the aluminum plated plate can be completely recycled.

>>Processing performance: Aluminized steel plates can be processed in the same way as other steel plates

> > Weldability: Because aluminum is soft and easy to bond, and because of its strong conductivity, the welding part has excellent heat dissipation. In addition, because the coating is higher than the melting point of zinc plating, it is not easy to flow and the melting area is small, so it is not necessary to use galvanized steel plate as a large current.

> >Surface appearance: it has lasting luster, better corrosion resistance and weather resistance.
