C26800 Brass Plate

Place of Origin: Shanghai, China
Type: Brass Plate
Certifications: ISO 9001,SGS,BV
Size: Customizable
Delivery Time:7 Days
Payment Term: T/T, L/C, WeChat pay, Alipay, etc
Transportation: By sea or land transportation
Category: CRC and HRC
Our Own Factory: Competitive price and quality
OEM/ODM
Quick delivery and standard exporting package

Email：sale@hjd-steel.com

WhatsApp：+86 18114114771

Inquiry Now →

Product Description

Product Name	Brass Plate/Sheet
Thickness	0.1mm-300mm
Width	10-3000mm
Length	100-12000mm, Or As Required
Standard	ASTM, AISI, JIS, GB, DIN, EN
Material	T1,T2,C10100,C10200,C10300,C10400,C10500,C10700,C10800,C10910,C10920, TP1,TP2,C10930,C11000,C11300,C11400,C11500,C11600,C12000,C12200,C12300, TU1,TU2,C12500,C14200,C14420,C14500,C14510,C14520,C14530,C17200,C19200, C21000,C23000,C26000,C27000,C27400,C28000,C33000,C33200,C37000,C44300,C44400,C44500, C60800,C63020,C65500,C68700,C70400,C70600,C70620,C71000,C71500,C71520,C71640,C72200,et
Hardness	1/16 hard,1/8 hard,3/8 hard,1/4 hard,1/2hard,full hard,soft,etc
Surface	mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required
Export to	Singapore,Indonesia,Ukraine,Korea,Thailand,Viet Nam,Saudi Arabia,Brazil,Spain, Canada,USA,Egypt,India,Kuwait,Dubai,Oman,Kuwait,Peru,Mexico,Iraq,Russia,Malaysia,etc
Application	1.Pancake Coil for ACR, General Engineering Applications 2. LWC Coil for ACR, General Engineering Applications 3. Straight Copper Tubes for ACR and Refrigeration 4. Inner-grooved copper tube for ACR and Refrigeration 5. Copper Pipe for Transportation System of water, gas and oil 6.PE-coated copper tube for water/gas/oil transportation system 7.Semi-finished Copper tube for industrial applications

Equivalent Grades in Different Standards for Brass Plate/Coil/Bar

GB	ISO	ASTM	JIS	BS	DIN
H59	CuZn41	C28000	C2800	CZ109	CuZn39
H62	CuZn38	C27400	C2740	--	CuZn40
H65	CuZn35	C26800	C2680	CZ107	CuZn36
H68	CuZn32	C26000	C2600	--	CuZn33
H70	CuZn30	C26000	C2600	CZ106	CuZn30
H80	CuZn20	C24000	C2400	CZ103	CuZn20
H85	CuZn15	C23000	C2300	CZ102	CuZn15
H90	--	C22000	C2200	CZ101	CuZn10
H96	CuZn41	C21000	C2100	CZ125	CuZn5

DESCRIPTION

Brass plate is a widely used lead brass, has good mechanical properties, and good machinability, can withstand hot and cold pressure processing, used in cutting and stamping processing of various structural parts, such as gaskets, bushings and so on. Tin brass plate has high corrosion resistance, good mechanical properties, good pressure processing in cold and hot state, can be used for corrosion resistant parts on ships and steam, oil and other media contact parts and conduits.

APPLICATION

Uses of brass sheet include construction, marine, transportation, military, architecture, energy and petrochemical, industrial, aerospace, electronics and automotive industries.

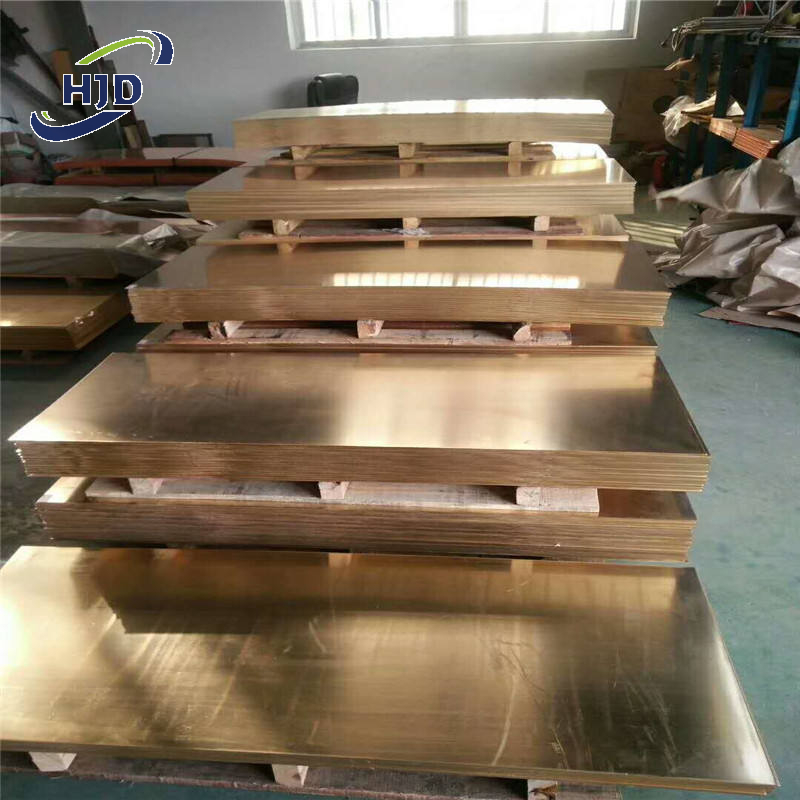

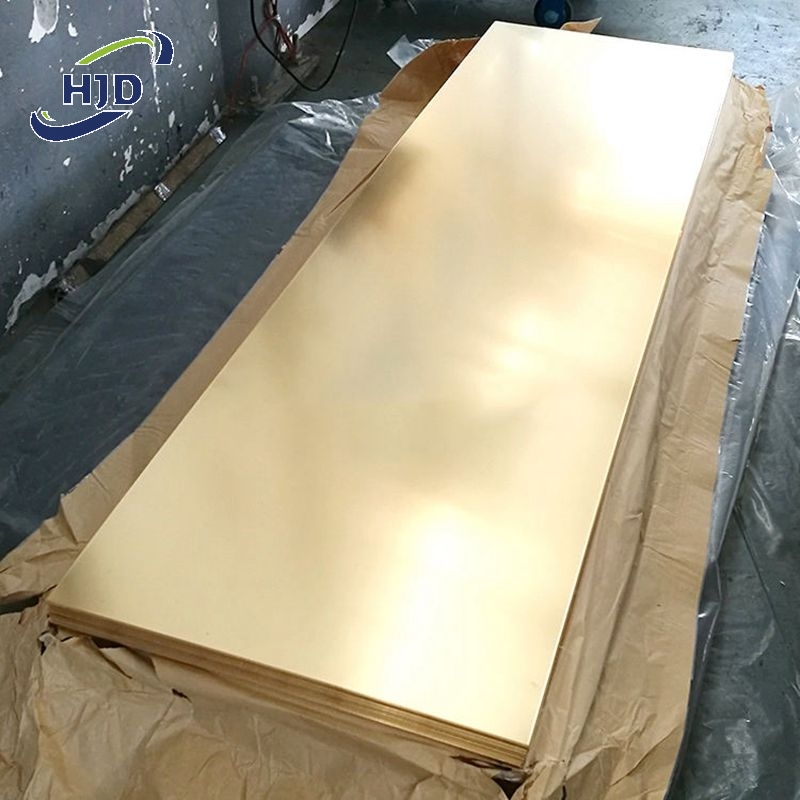

Product Show
