Hot-dip galvanization is a form of galvanization. It is the process of coating iron and steel with zinc, which alloys with the surface of the base metal when immersing the metal in a bath of molten zinc at a temperature of around 450 °C (842 °F).

Product Description

Product Detail

Hot dip galvanized pipe is made of molten metal and iron matrix reaction to produce alloy layer, so that the matrix and coating two combination. Hot dip galvanizing is to first pickling the steel tube. In order to remove the iron oxide on the surface of the steel tube, after pickling, it is cleaned in the tank of ammonium chloride or zinc chloride solution or mixed aqueous solution of ammonium chloride and zinc chloride, and then sent into the hot dip plating tank. Hot dip galvanizing has the advantages of uniform coating, strong adhesion and long service life. Complex physical and chemical reactions occur between the steel tube base and the molten bath to form a compact zinc-iron alloy layer with corrosion resistance. The alloy layer is integrated with the pure zinc layer and the steel tube matrix. Therefore, its corrosion resistance is strong.

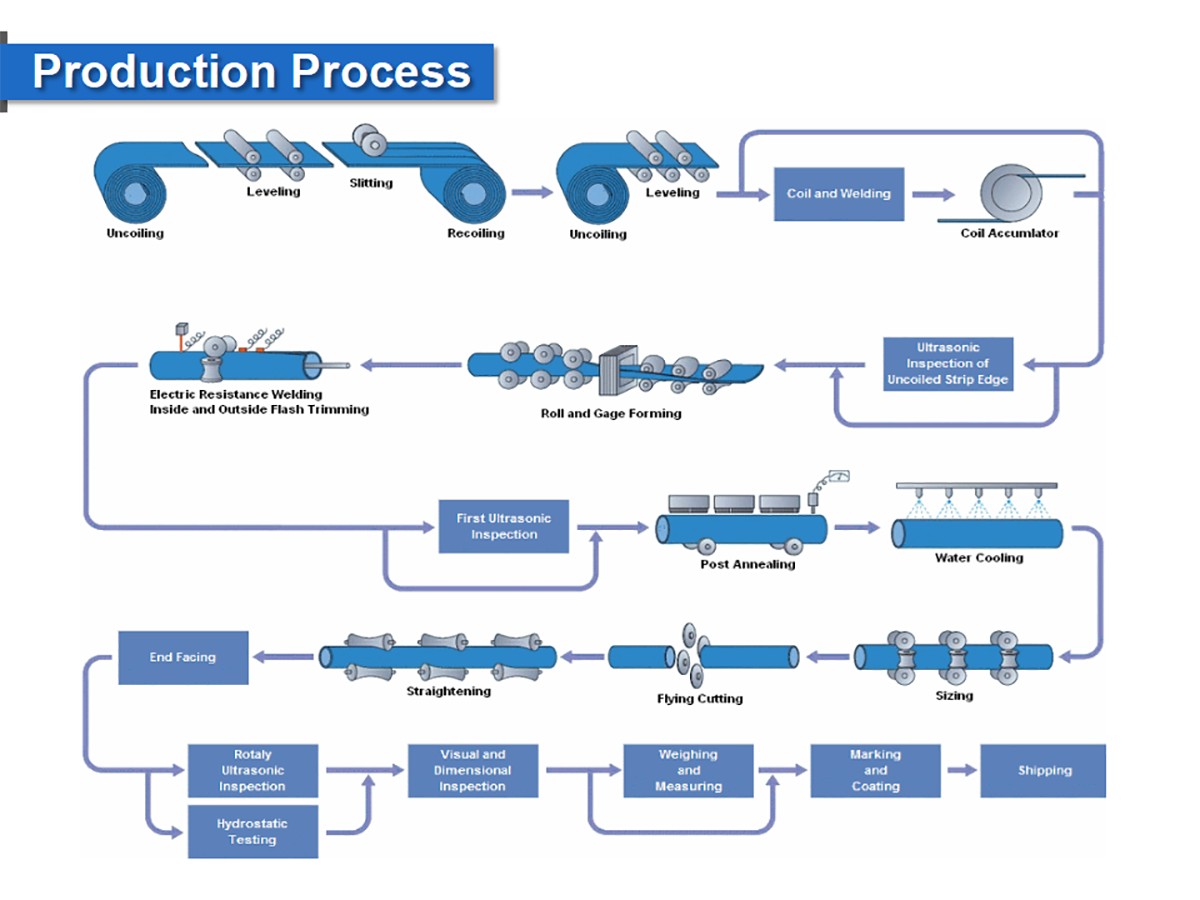

Production Process:

Inspection Raw material in site (surface zinc coating and size)

Open Coil and Joined welding

Continuous ERW or HFW welding

Cutting

End and welding inspection (Painting ends)

Mark Packing and Trucking

Application:

Building and structural material

Mechanical and general engineering purposes

Manufacturing of Bus Body, Railway Boogies

In Telephone department as Conduit Pipes

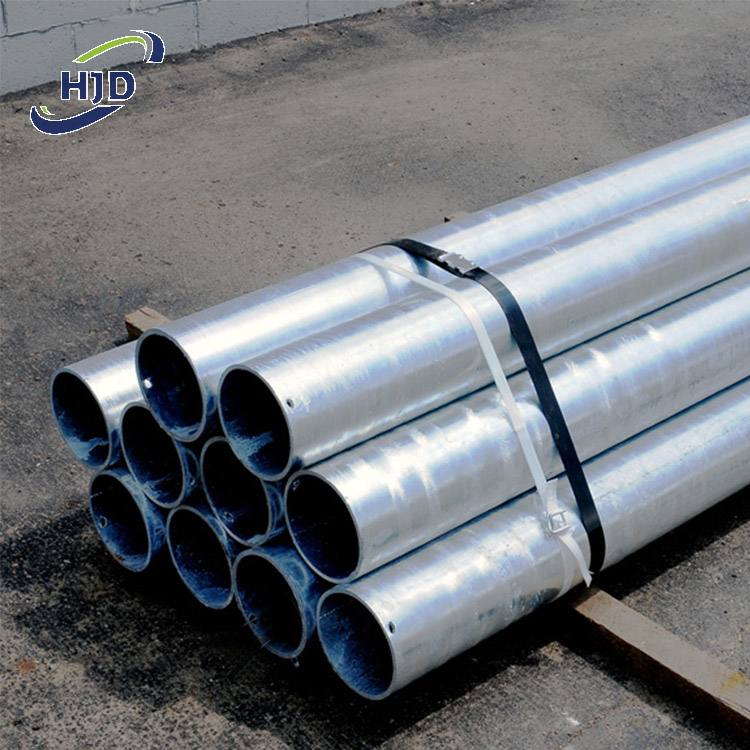

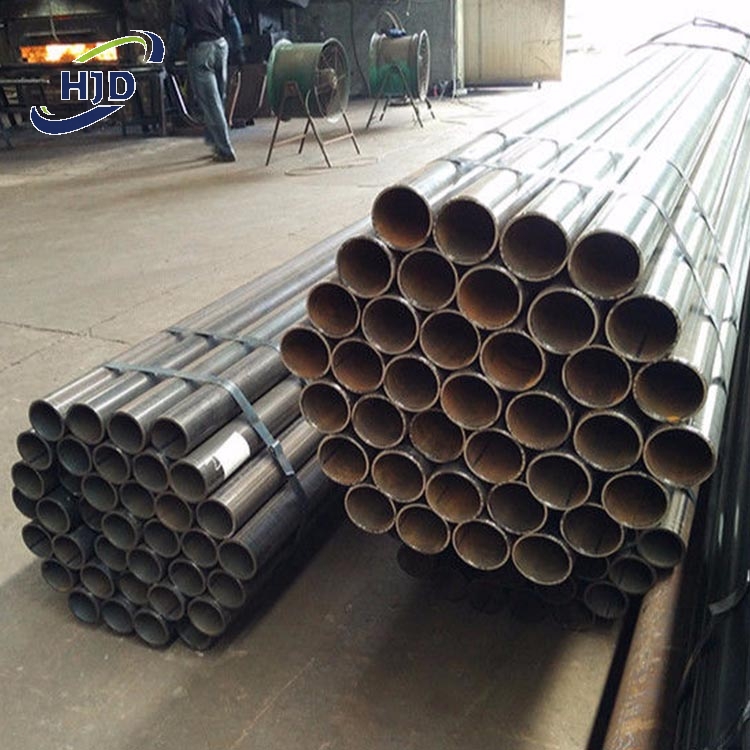

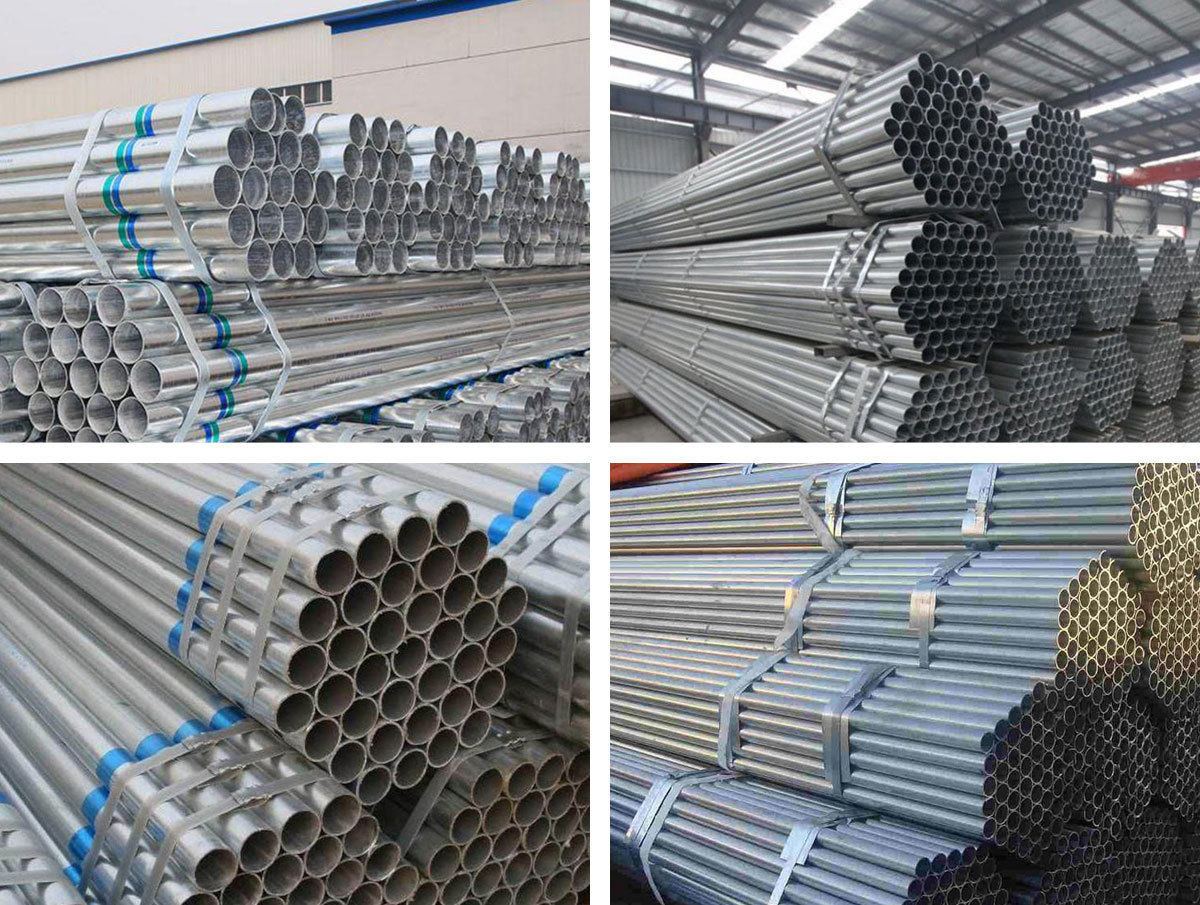

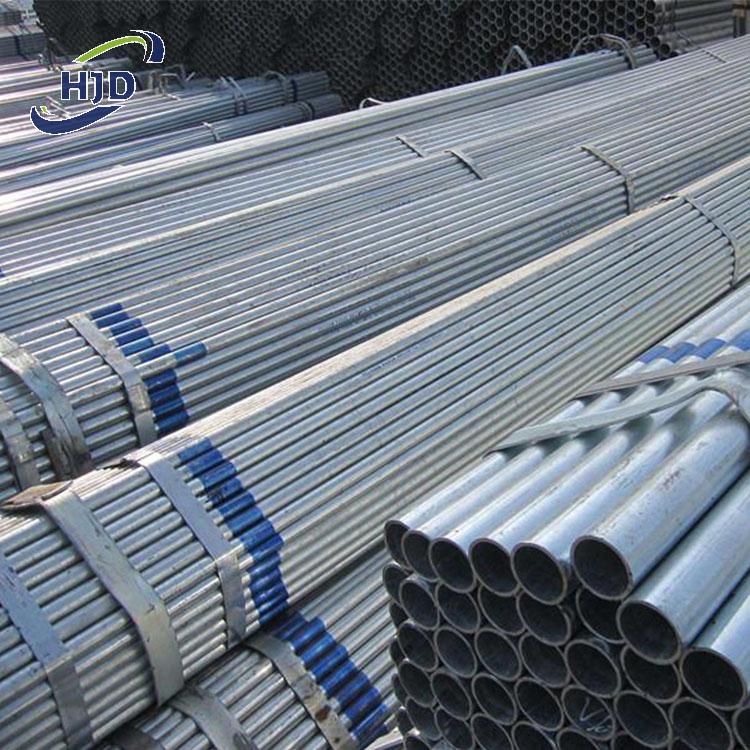

Product Show
